🏎️ 50% OFF! Pousbo® Fuel Injector Tester｜Fix High Fuel Use Fast ⚡

The tester can help diagnose injector problems, you can use it to test each injector individually to help identify blockage, leakage, or exhaustion conditions.

Key features

 * This injector tester with 41.5cm/16.3 inch test lead can work with any fuel pressure tester.

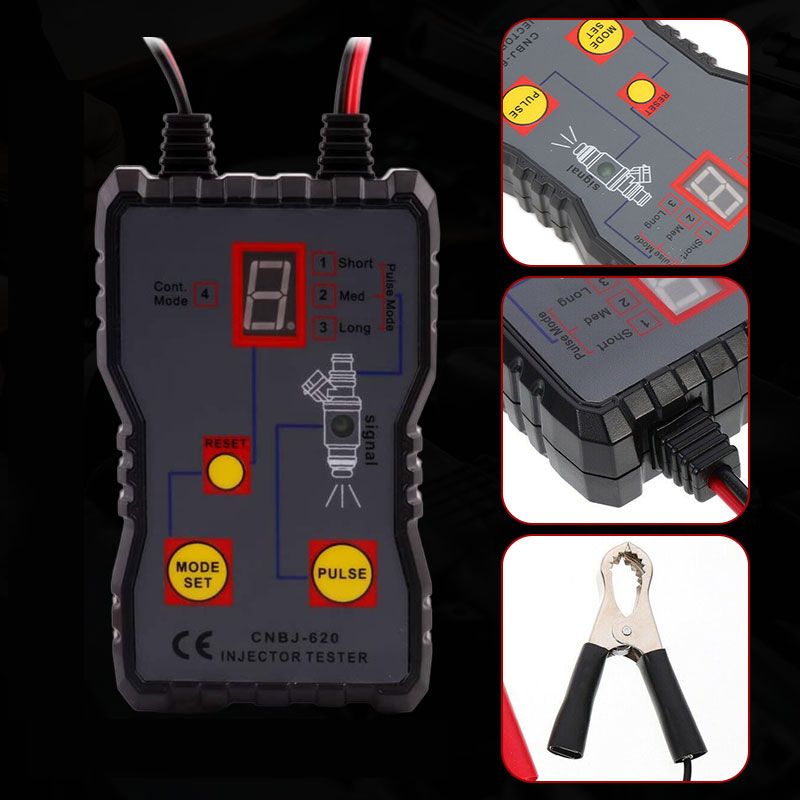

 * 4 Modes - Large LED display with 4 pulse modes - Short/Medium/Long/Continuous modes help identify good or bad injectors.

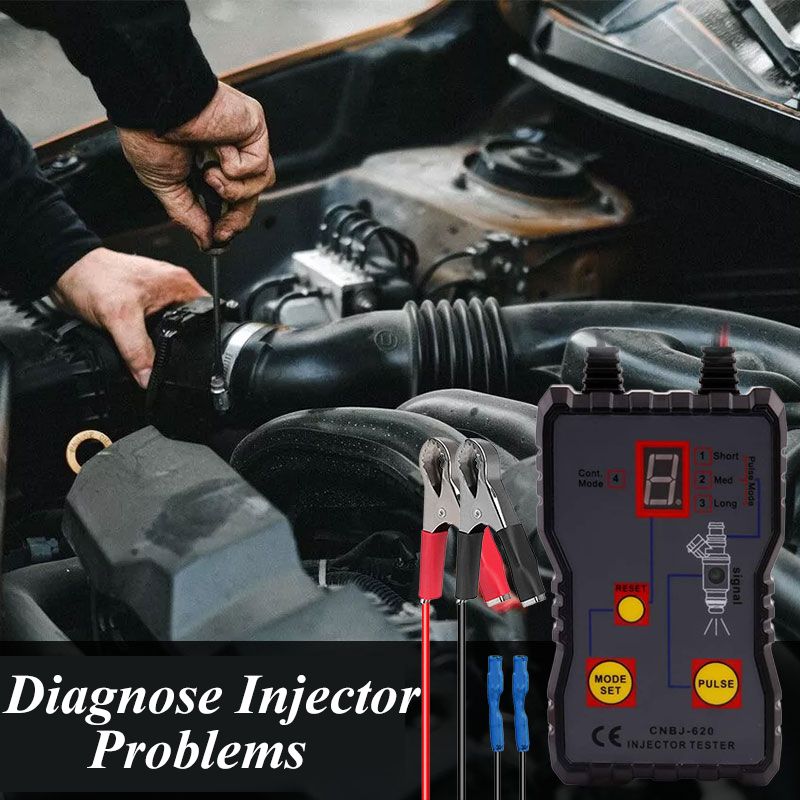

 * Diagnosing Injector Problems – You can use this to test each injector individually to help identify stuck conditions, leaks, or burns.
 * Operates with the engine off and a pulse timer can be used with the fuel pressure gauge.
 * The injector cleaning adapter kit easily cleans almost all types of car and motorcycle fuel injectors.
 * Powered by 12V vehicle battery

OPERATING INSTRUCTIONS

 *1. Turn off the vehicle's engine

 *2. Connect the black clamp to the negative terminal of the vehicle's battery and connect the red clamp to the positive terminal of the battery.

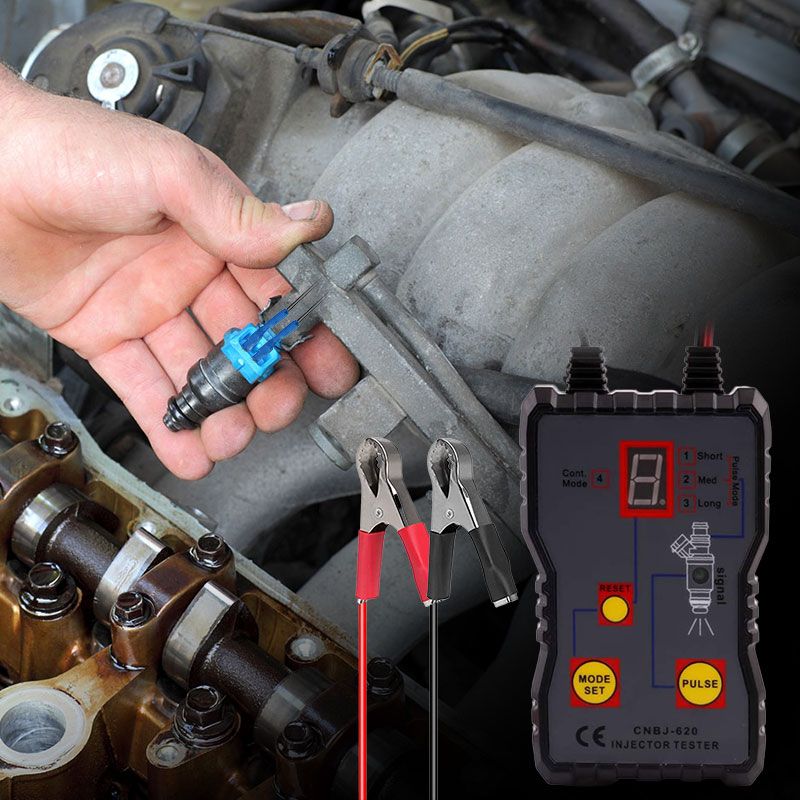

 * 3. Locate the fuel injector you want to test, then remove the electrical cable from that injector and connect the tester's two pulse output terminals to the electrical connector on that injector.

 * 4. Press the MODE SET button to select the desired pulse mode, and the display displays the current pulse mode.

 * 5. After selecting the desired pulse mode, press the PULSE button.

The tester emits a pulse to the injector to be tested and the pulse signal indicator lights up as an indication.

NOTE: Gasoline cars and only, NOT diesel engines.

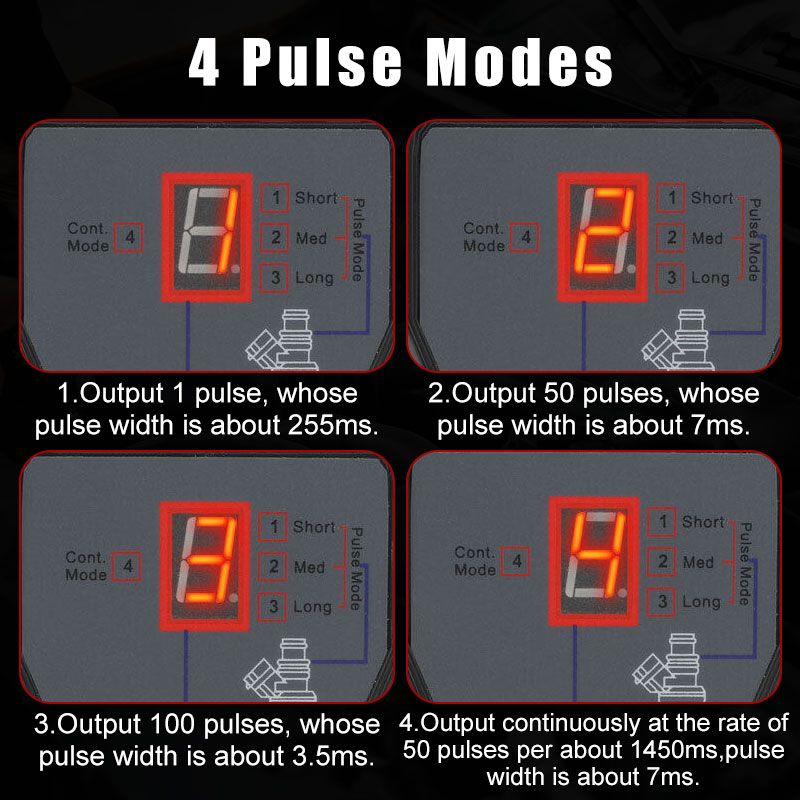

EXPLANATION OF THE 4 MODES

Mode 1: The tester will emit 1 pulse, the pulse width of which is about 255ms.

Mode 2: The tester will emit 50 pulses, the pulse width of which is about 7ms.

Mode 3: The tester will emit 100 pulses, the pulse width of which is about 3.5ms.

Mode 4: The tester will transmit continuously at the speed of 50 pulses by about 1450ms, of which the pulse width is about 7ms.

At any time, you can press the PULSE button again to stop exiting the pulse.

Usage Tips: Reconnect the battery when you switch the mode.

SPECIFICATION

Material: ABS Shell Electronic Components

Color: As Shown

Product Size: 147*82*92mm

Weight: 200g

Operating Environment: 0~40°C, Relative Humidity: <80%

Storage Environment: -20~50°C, Relative Humidity: <85%

Package Includes: 1 * Pousbo®  Automotive Fuel Injector Tester

NOTE

Please allow a slight deviation in measurement due to manual measurement.

Due to the different monitor and light effects, the actual color of the item may be slightly different from the color shown in the pictures.
